Description
●This timing tool set is a professional tool specifically designed for Volkswagen group EA 211, EVO 4 cylinder TSi ACT, EA 211 3 & 4 cylinder (without ACT), TFSi CoD, TSi ACT, TFSi, BlueGT TSi ACT petrol engines, without the need to resort to computer based alignment tools.
●The set includes a battery-powered digital inclinometer and precision adapters that ensure the camshafts are precisely set according to the manufacturer's specifications.
●The use of this tool set does not require interaction with the vehicle's OBD system.
●Engine applications include: 1.0L, 1.2L, 1.4L, 1.5L, 1.6L & 1.4 CPTA,CZDB, CZEA TSi Petrol engine.
●Engine variants include: EA 211, EVO 4 cylinder TSi ACT, EA 211 3 & 4 cylinder (without ACT), TFSi CoD, TSi ACT, TFSi, BlueGT TSi ACT.
●Applications include: Audi (from 2012), Seat (from 2015), Skoda (from 2015) & Volkswagen (from 2015).

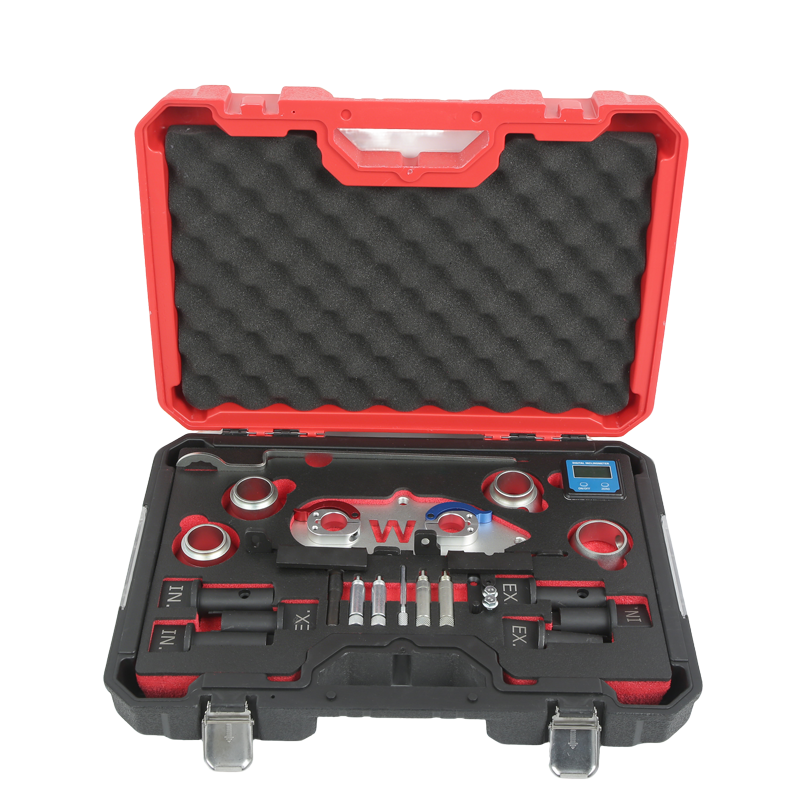

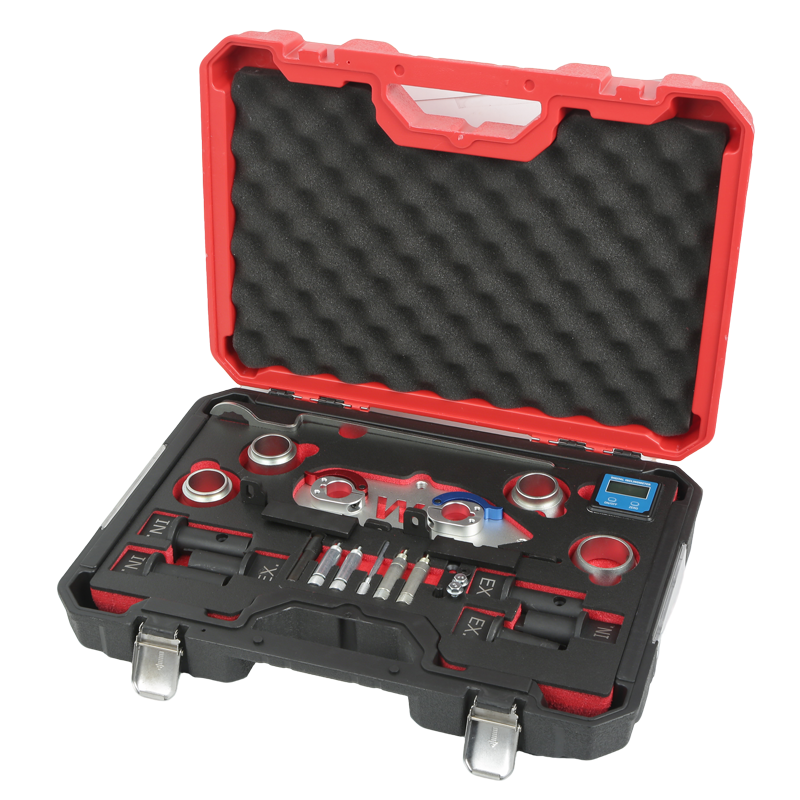

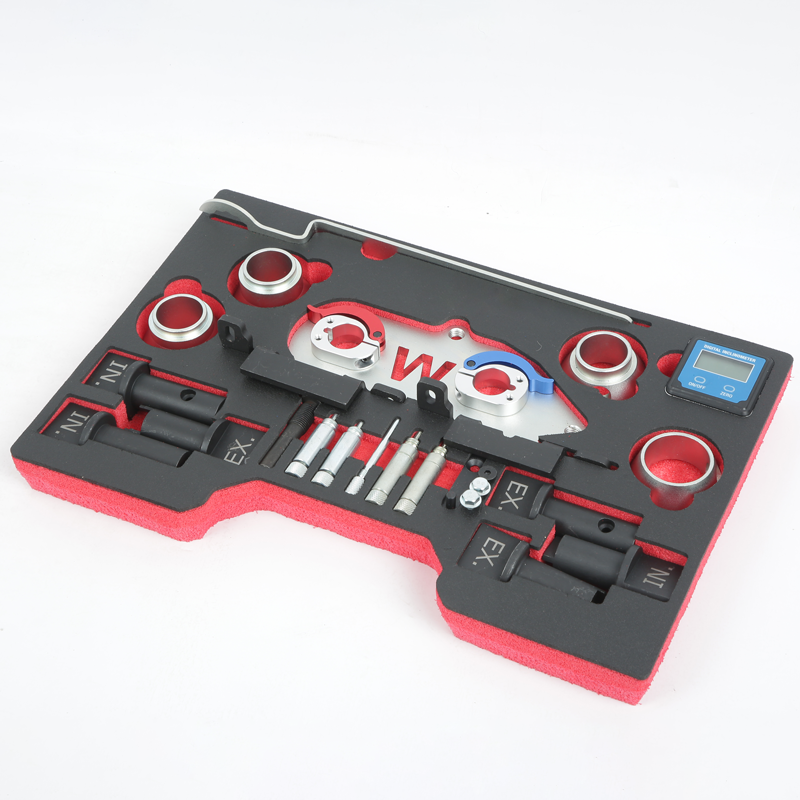

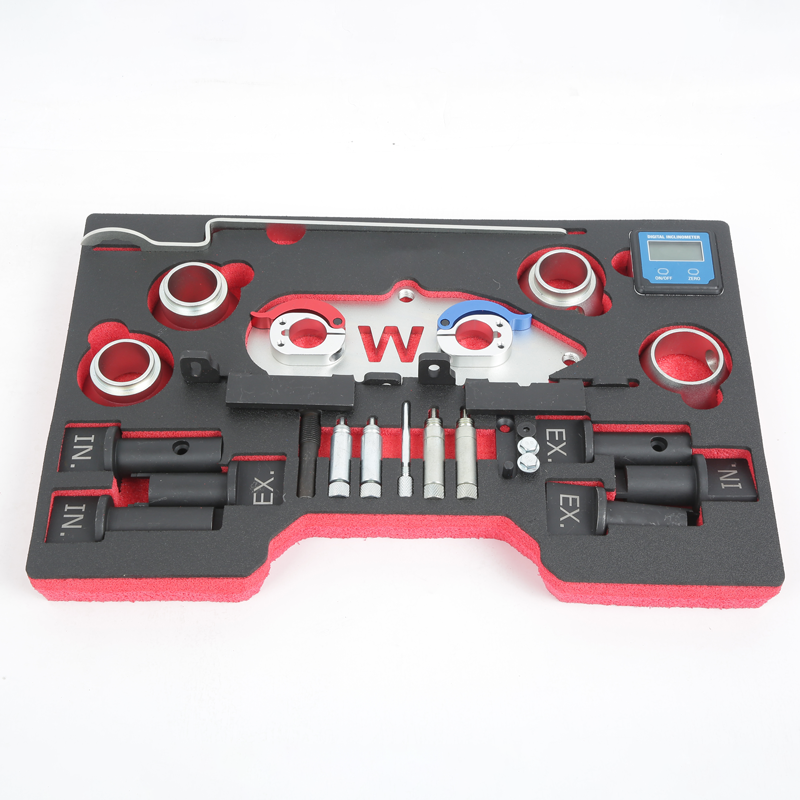

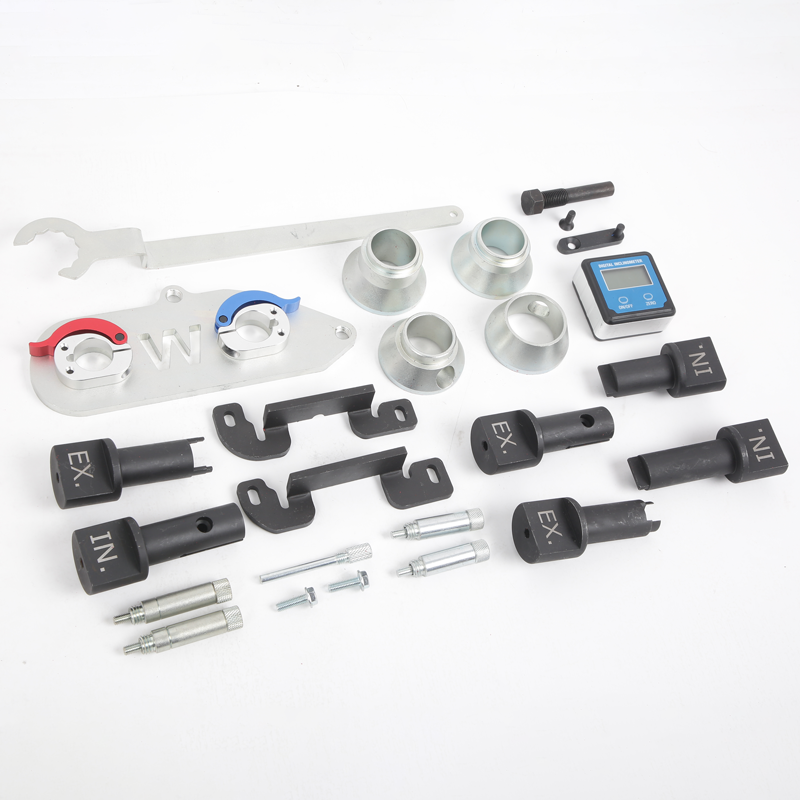

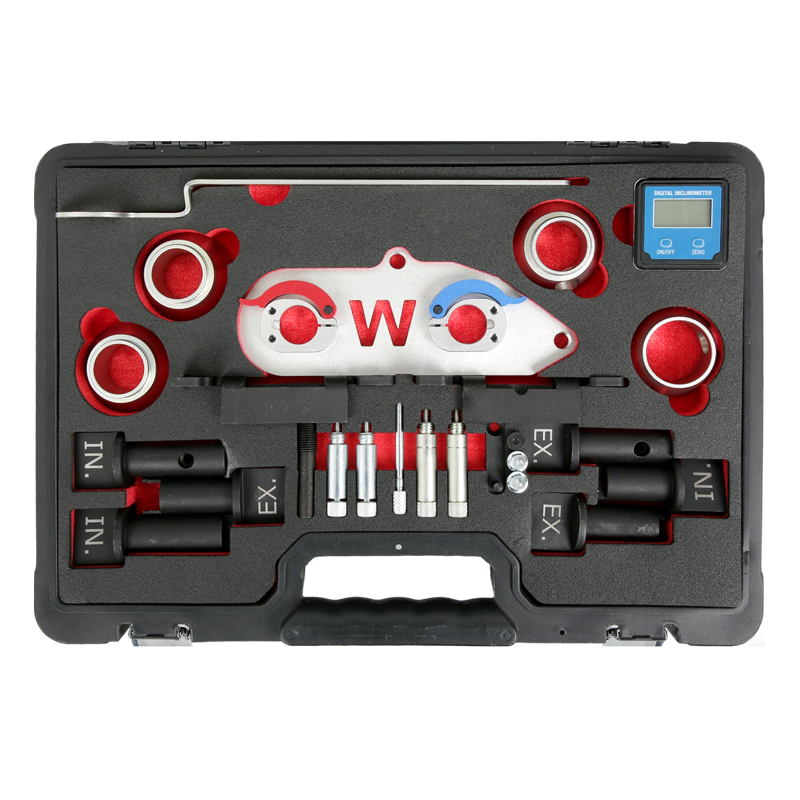

●Contents:
Adaptor Plate for Camshaft Housing OEM.VAS 611 007
Mounting Spacers & Screws for Adaptor Plate OEM.VAS 611 007, 611 007/8
Inlet Camshaft Spacer Boss (EA211 EVO) OEM.VAS 611 007, 611 007/8, 611 007/19, 611 007/18.
Exhaust Camshaft Spacer Boss (EA211 EVO) OEM.VAS 611 007,611 007/8
Inlet Camshaft Adaptor (EA211 EVO) OEM.VAS 611 007, VAS 611 007/18/19
Exhaust Camshaft Adaptor (EA211 EVO) OEM.VAS 611 007
Inclinometer Reference Bar (EA211 EVO) 1.5 OEM.VAS 611 007,611 007/8
Fixing Screws for G OEM.VAS 611 007
Inclinometer
Camshaft Rear (water pump) Sprocket Timing Pin OEM.T10504/1
Crankshaft Timing Pin OEM.T10340
Lever Stop Pins x 2
Tensioner Pulley Adjuster Tool OEM.T10499
●The set includes a battery-powered digital inclinometer and precision adapters that ensure the camshafts are precisely set according to the manufacturer's specifications.
●The use of this tool set does not require interaction with the vehicle's OBD system.
●Engine applications include: 1.0L, 1.2L, 1.4L, 1.5L, 1.6L & 1.4 CPTA,CZDB, CZEA TSi Petrol engine.
●Engine variants include: EA 211, EVO 4 cylinder TSi ACT, EA 211 3 & 4 cylinder (without ACT), TFSi CoD, TSi ACT, TFSi, BlueGT TSi ACT.
●Applications include: Audi (from 2012), Seat (from 2015), Skoda (from 2015) & Volkswagen (from 2015).
●Contents:
Adaptor Plate for Camshaft Housing OEM.VAS 611 007
Mounting Spacers & Screws for Adaptor Plate OEM.VAS 611 007, 611 007/8
Inlet Camshaft Spacer Boss (EA211 EVO) OEM.VAS 611 007, 611 007/8, 611 007/19, 611 007/18.
Exhaust Camshaft Spacer Boss (EA211 EVO) OEM.VAS 611 007,611 007/8
Inlet Camshaft Adaptor (EA211 EVO) OEM.VAS 611 007, VAS 611 007/18/19
Exhaust Camshaft Adaptor (EA211 EVO) OEM.VAS 611 007
Inclinometer Reference Bar (EA211 EVO) 1.5 OEM.VAS 611 007,611 007/8
Fixing Screws for G OEM.VAS 611 007
Inclinometer
Camshaft Rear (water pump) Sprocket Timing Pin OEM.T10504/1
Crankshaft Timing Pin OEM.T10340
Lever Stop Pins x 2
Tensioner Pulley Adjuster Tool OEM.T10499
