Description

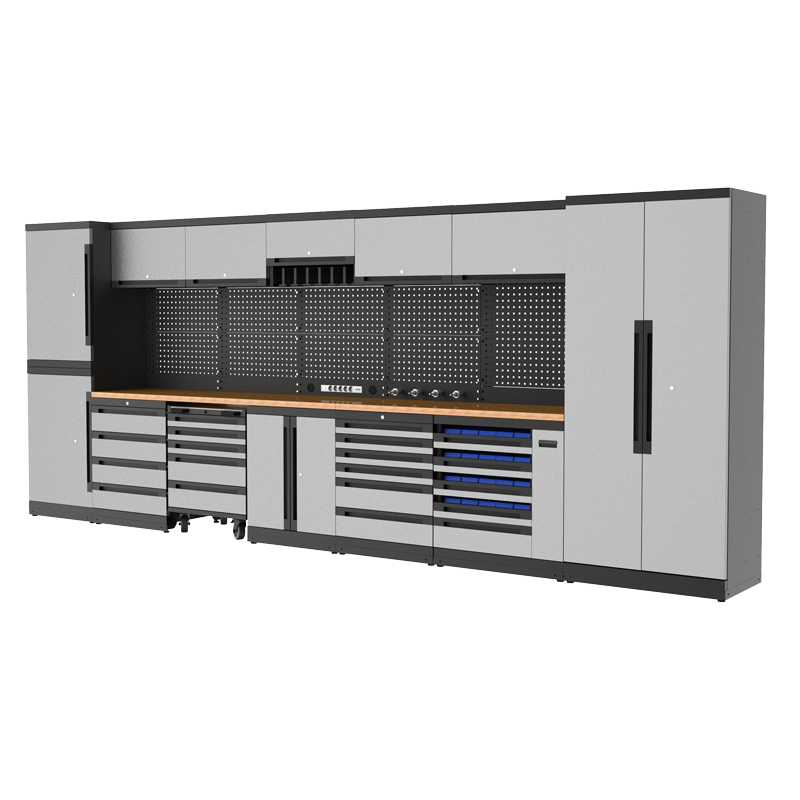

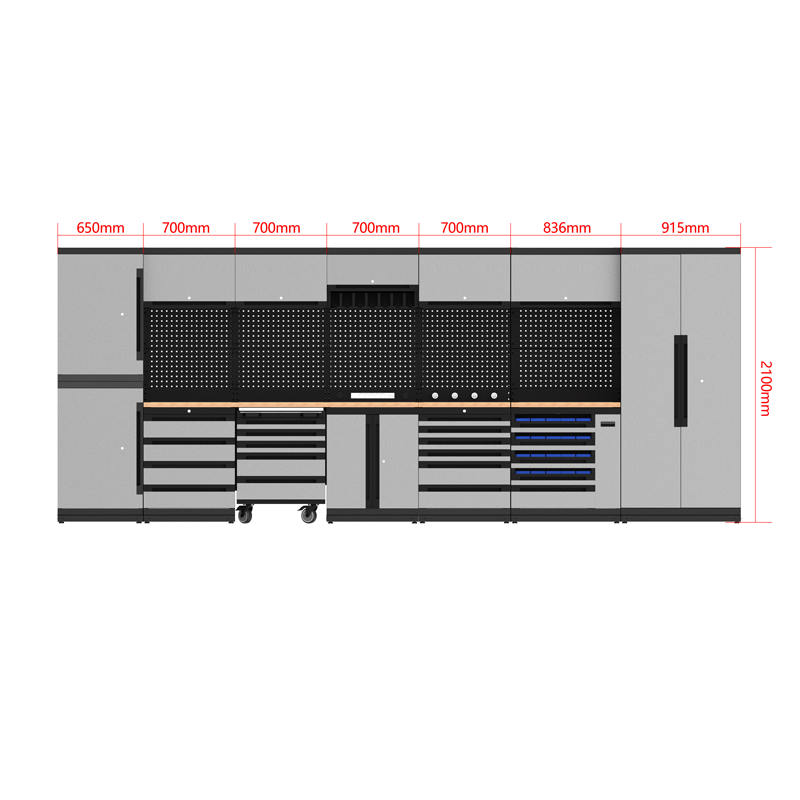

Contents:
3x WT01Y0322 1-door wall cabinet
1x WT01Y0325 Top cabinet&adjustable power tool rack
1x WT01Y0407 1-door wall cabinet For WT01Y0406 Parts
1x WT01Y0318 6-drawer cabinet
1x WT01Y0313 4-drawer cabinet
1x WT01Y0315 5-drawer cabinet with caster
1x WT01Y0337 2-door Tool cabinet
1x WT01Y0408 2-door standing cabinet(Upper & Base Combined)
1x WT01Y0312 2-door standing cabinet(Disassembly and assembly structure (KD)
1x WT01Y0406 5-DRAWER PARTS STORAGE CABINET with Pull-out Side Cabinet
8x WT01Y0326 Perforatedpenelsize: 700*308*20mm
2x WT01Y0410 Perforatedpenelsize: 836*308*20mm
1x WT01Y0324 Power socket fixing plate:4-European socket, 3-USB socket, 1-Type-c socket
1x WT01Y0329 4pcs Gas pipe connector
3x WT01Y0321 700mm Long Backplane
1x WT01Y0412 836mm Long Backplane
1x WT01Y0331 Rubber wood board 2100x560x38
1x WT01Y0412 Rubber wood board 1536x560x38
8x WT01Y0327 Fixed bar:1850*60*30mm

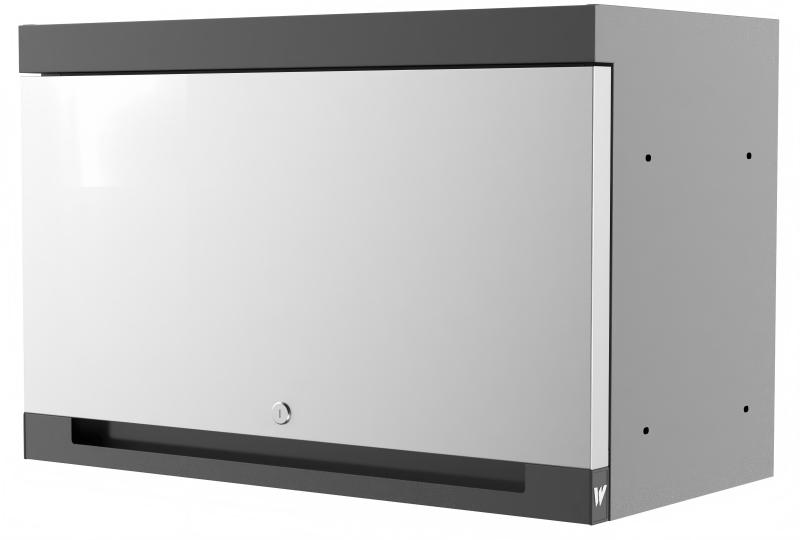

WT01Y0322 1-DOOR WALL CABINET

Size:700x360x460mm
2pcs of gas struts, 2pcs key
Packing size: 765*425*51mm
NW./GW.: 15.5/17Kg

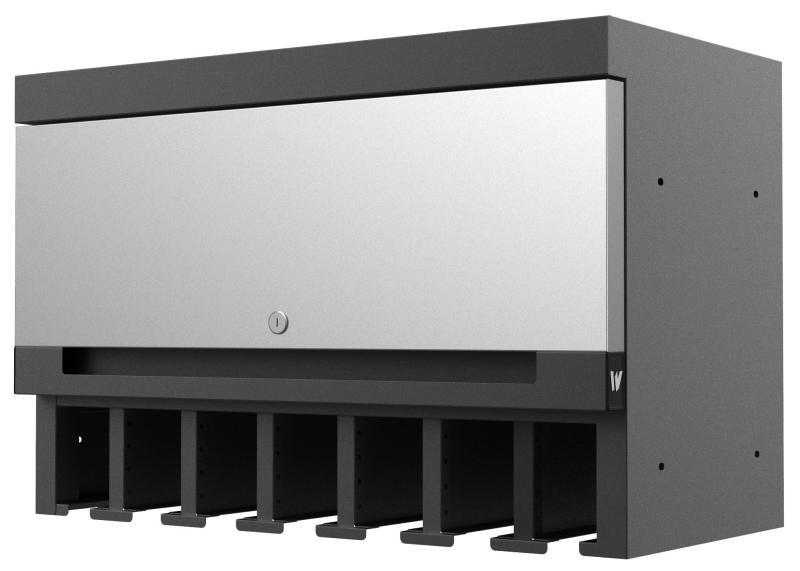

WT01Y0325 ADJUSTABLEELECTRIC TOOL HANGER


Size: 700x360x460mm
Adjust to meet different
models of electric tools
Packing size: 765*425*51mm
NW./GW.: 19/21Kg
WT01Y0407 1-DOOR WALL CABINET Compatible For WT01Y0406 Parts


Size:836x360x460mm
2pcs of gas struts, 2pcs key
Packing size: 860*425*51mm
NW./GW.: 15.5/17Kg

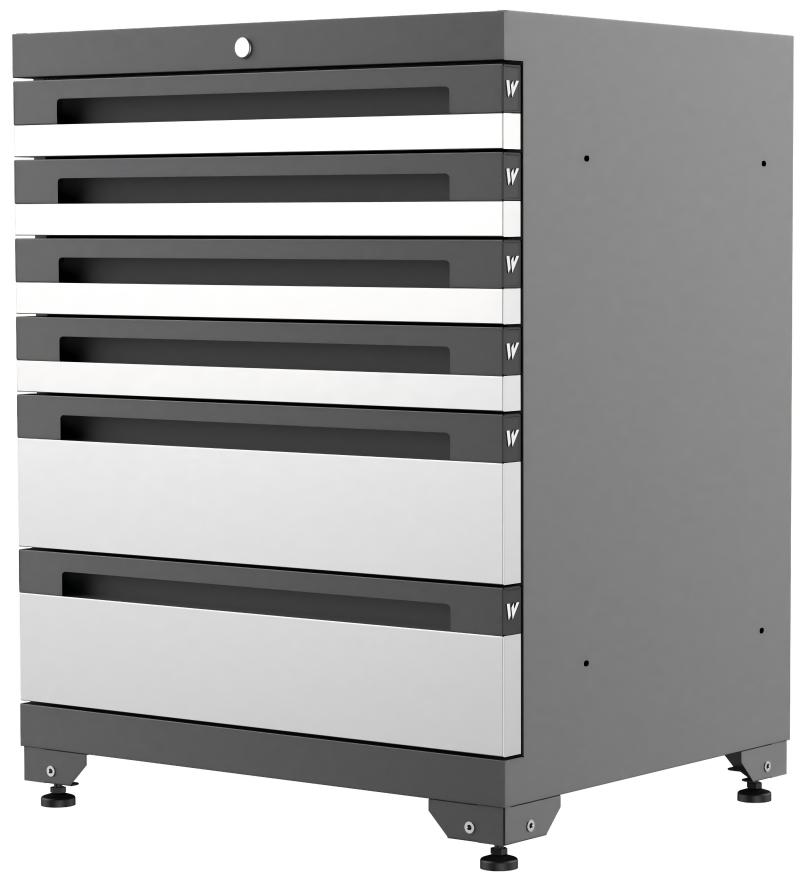

WT01Y0318 6-DRAWER CABINET


Size: 700x560x820/880mm (Include feet)
Drawer size: 4-608*428*58mm,
2-608-428*98mm
Packing size: 765*625*870mm

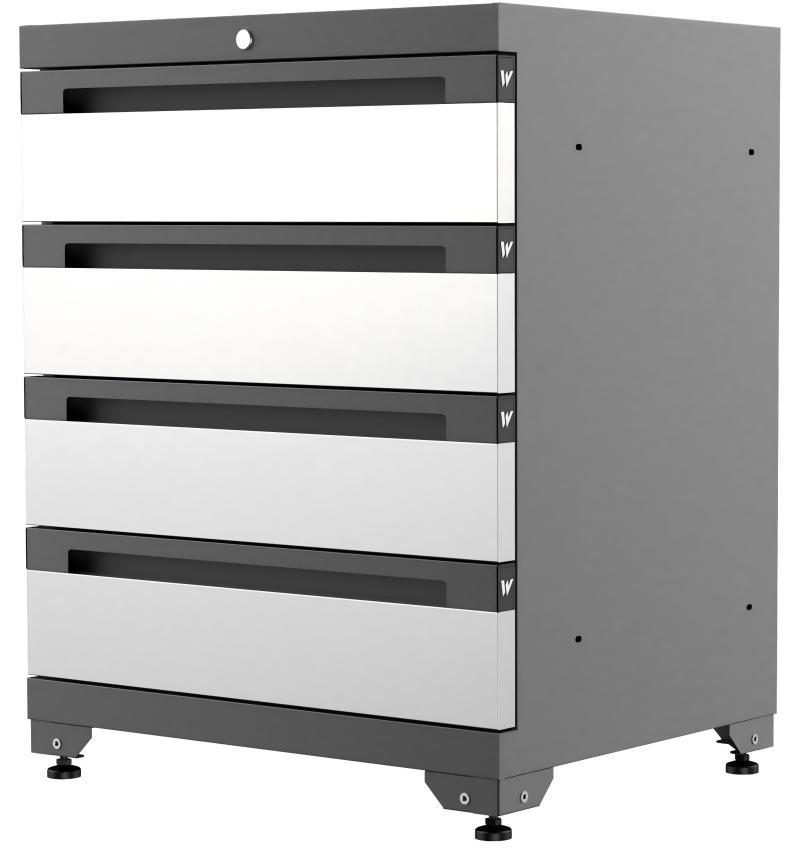

WT01Y0313 4-DRAWER CABINET

Size: 700x560x820/880mm (Include feet)
Drawer size: 4-608-428*98mm
Packing size: 765*625*870mm
NW./GW.: 51/53Kg

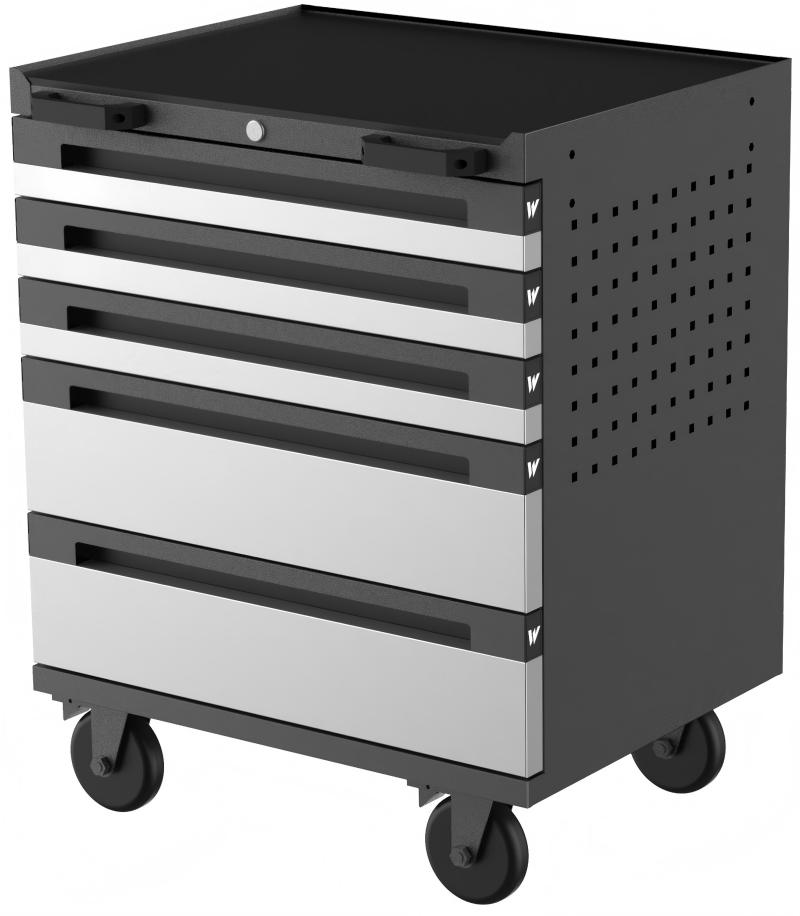

WT01Y0315 5-DRAWER CABINET with CASTER
Size: 660x520x850mm (Include caster)
Drawer size:3-569*425*58mm,2-569-425*98mm
4PCS 4"* 1.5" casters, 2PCS with brakes
Packing size: 705*575*775mm
NW./GW.: 54/56Kg

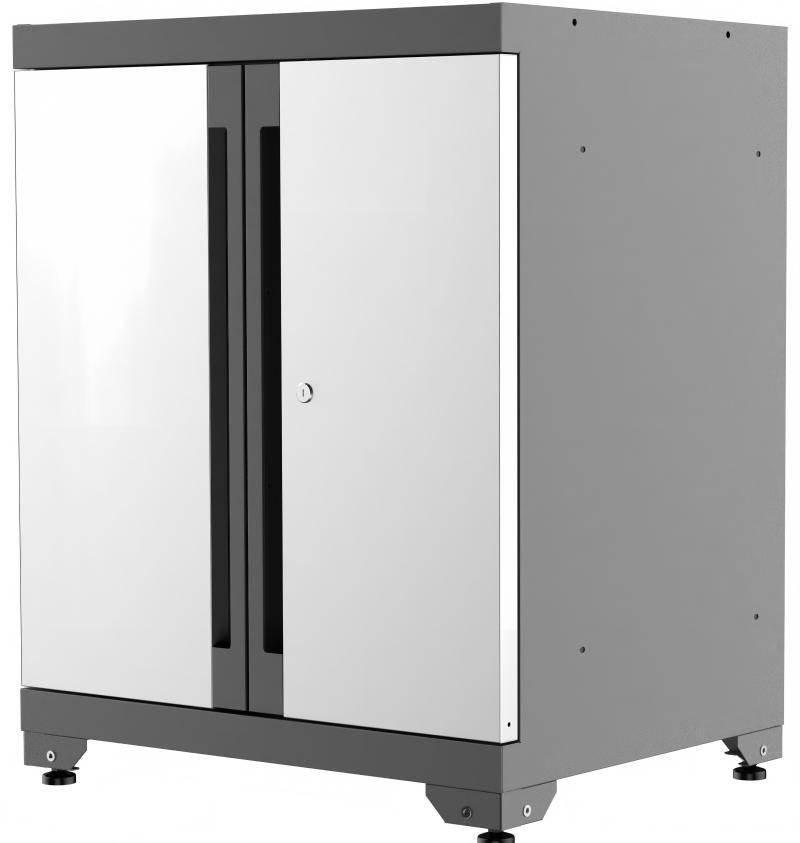

WT01Y0337 2-DOOR TOOL CABINET



Siz: 700x560x820/880mm (Include feet)
Packing size: 765*625*87mm
NW./GW.: 35/37Kg

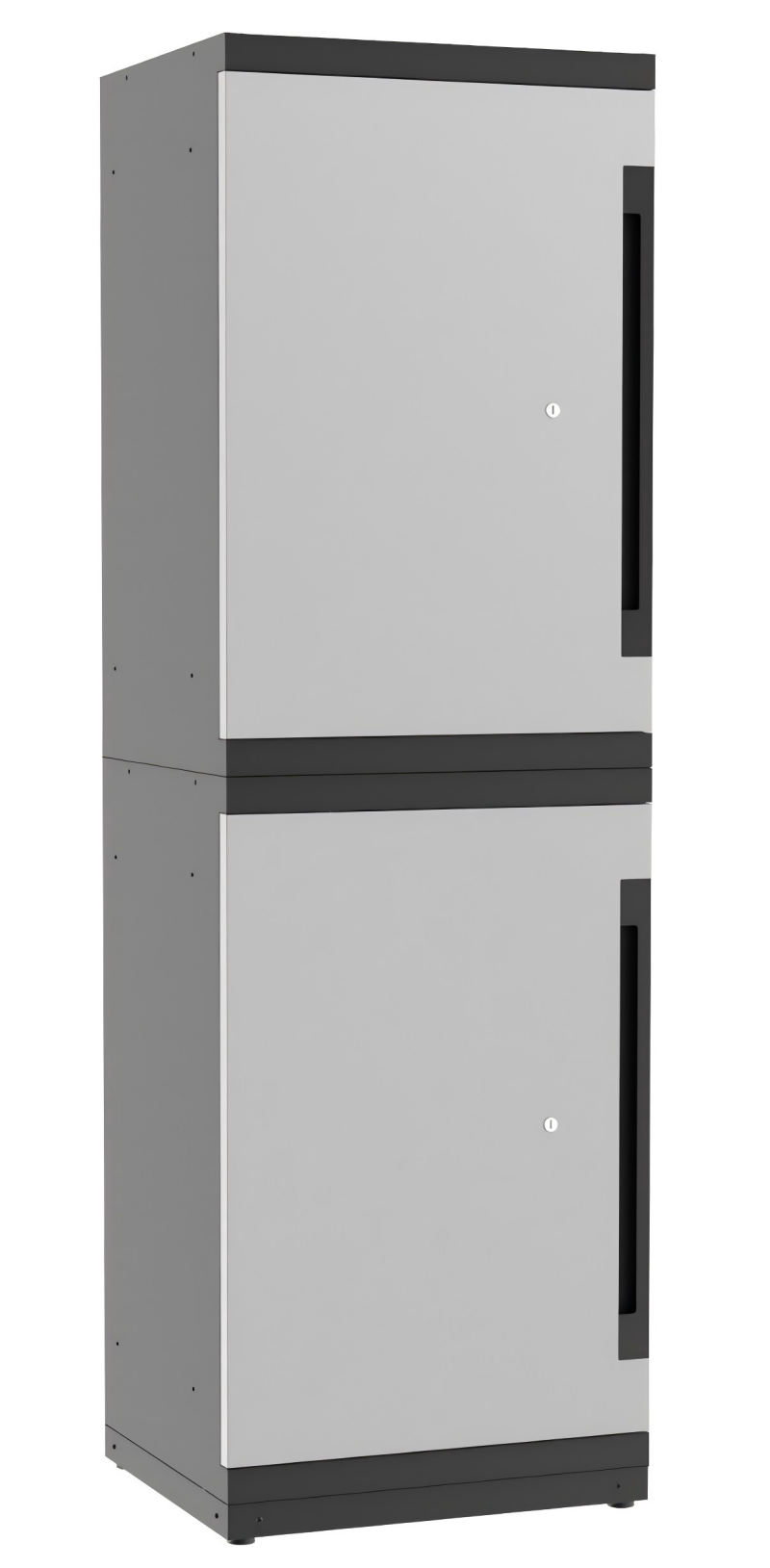

WT01Y0408 2 DOOR STANDING CABINET


Size: 2x650x560x1020/2100mm
Packing size: 2100*710*280mm
NW./GW.: 77/80Kg

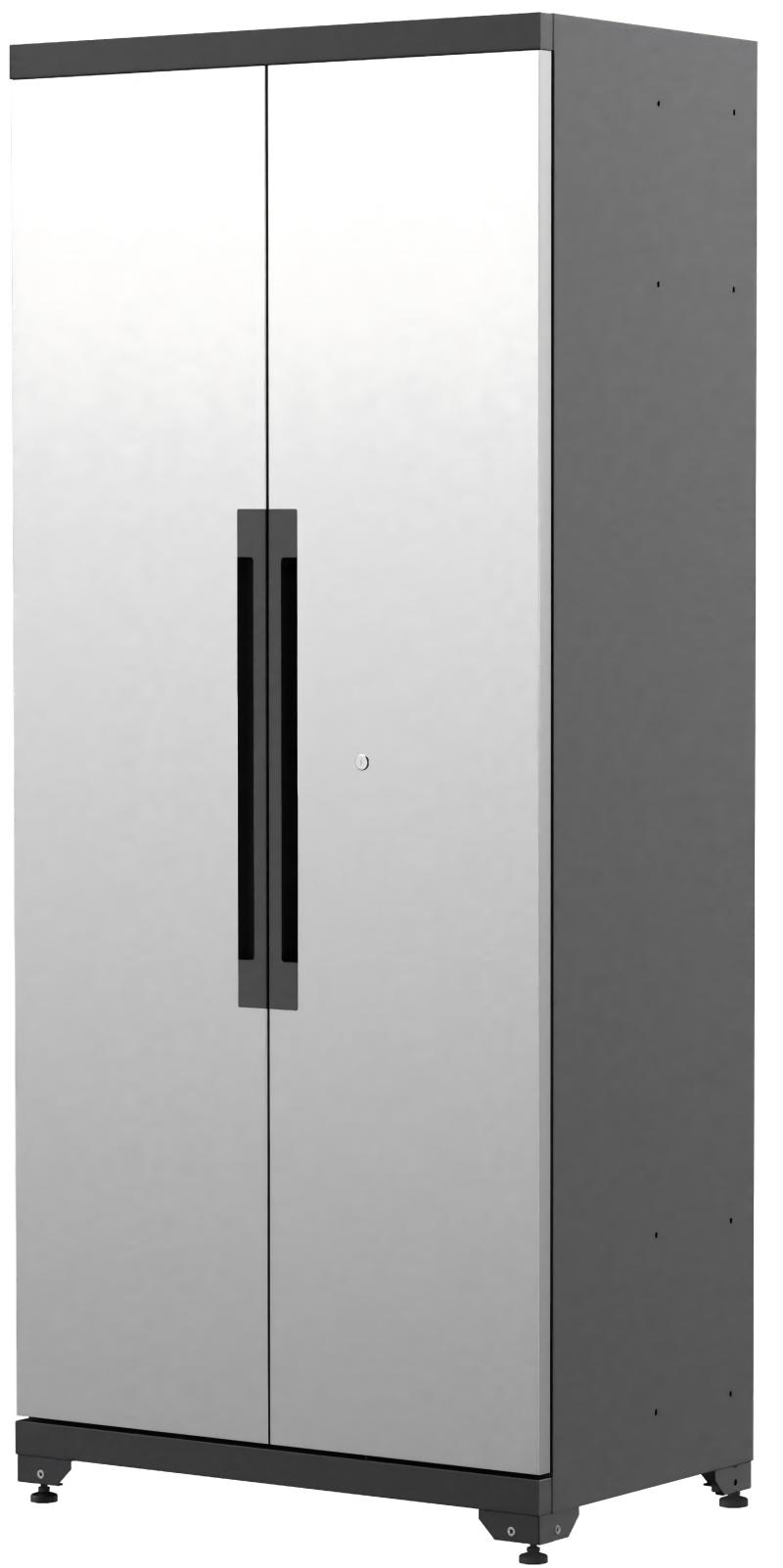

WT01Y0312 2 DOOR STANDING CABINET

Size: 915x560x2040/2100mm
Packing size: 2100*970*280mm
NW./GW.: 98/100Kg

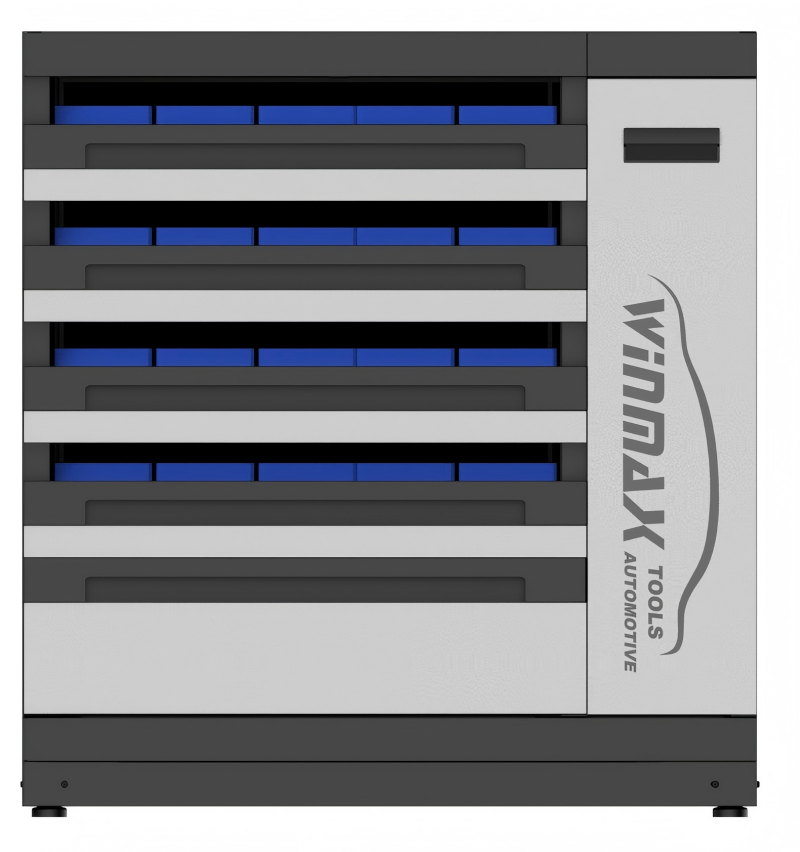

WT01Y0406 5-DRAWER PARTS STORAGE CABINET with Pull-out Side Cabinet


Size: 836x560x820/880mm(Include feet)
4 drawers equipped with parts bins
(5 blue bins per drawer);
1 drawer with black PE liner
Pull-out side cabinet
with square hanging holes
Packing size: 881*600*860mm
NW./GW.: 60/63Kg

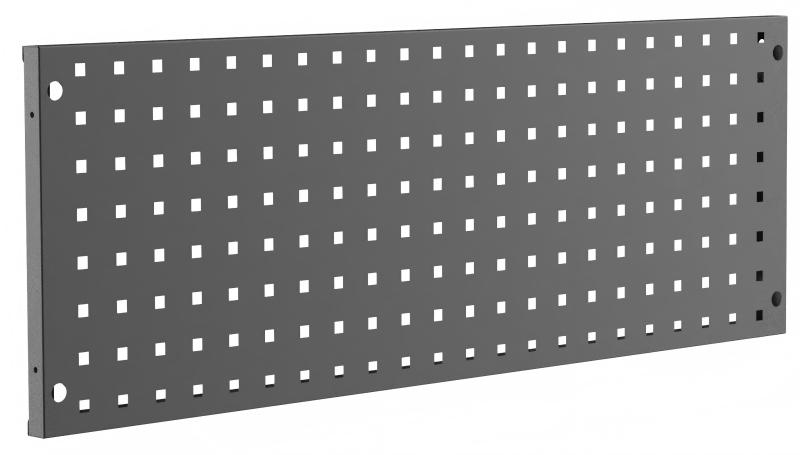

WT01Y0326 PERFORATED PANEL


Size: 700x308x20mm
Packing Size:
750*360*30mm
WT01Y0410 PERFORATED PANEL Compatible For WT01Y0406 Parts


Size: 836x308x20mm
Packing Size:
886*360*30mm
WT01Y0324 Power supply socket


Size: 700x100x20mm
4-European socket, 3-USB socket, 1-Type-c socket
Packing Size: 750*200*250mm

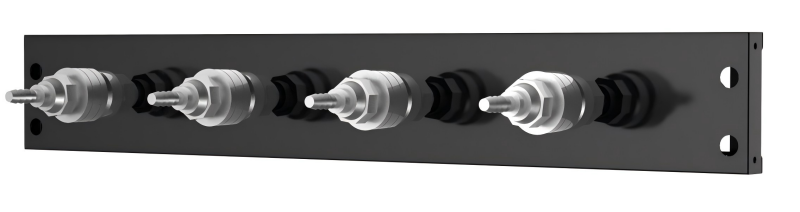

WT01Y0329 Gas pipe connector


Size:700x100x20mm
4pcs Gas pipe connector
Packing Size: 750x200x250mm
WT01Y0321 Backplane

Size:700x100x20mm
Packing Size: 750*200*250mm
WT01Y0411 Backplane Compatible For WT01Y0406 Parts


Size:836x100x20mm
Packing Size: 855*200*250mm
WT01Y0412 RUBBER WOOD BOARD Compatible For WT01Y0406 Parts


Size: 1536x560x38mm
Packing Size: 1536*575*53mm

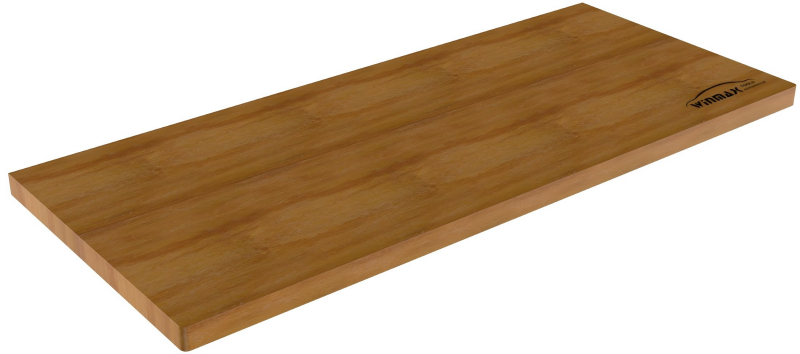

WT01Y0331 RUBBER WOOD BOARD


Size: 2100x560x38mm
Packing Size: 2115*575*53mm

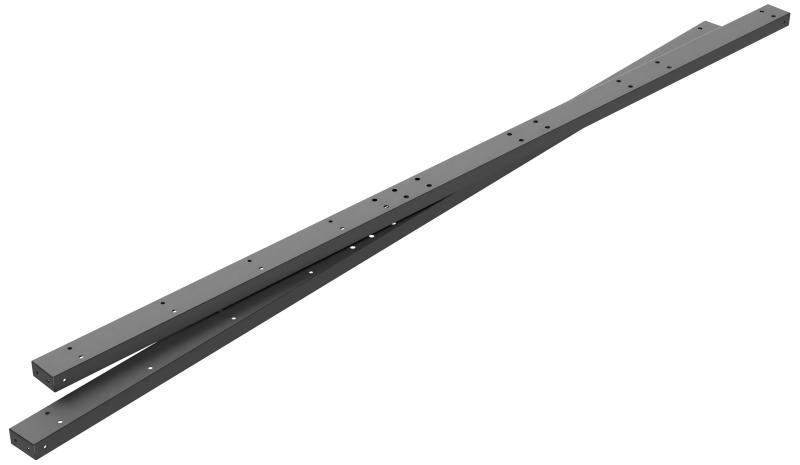

WT01Y0327 Fixed bar


Size: 1850x60x30mm
Packing Size: 1900*35*80mm
