1. What is car timing?

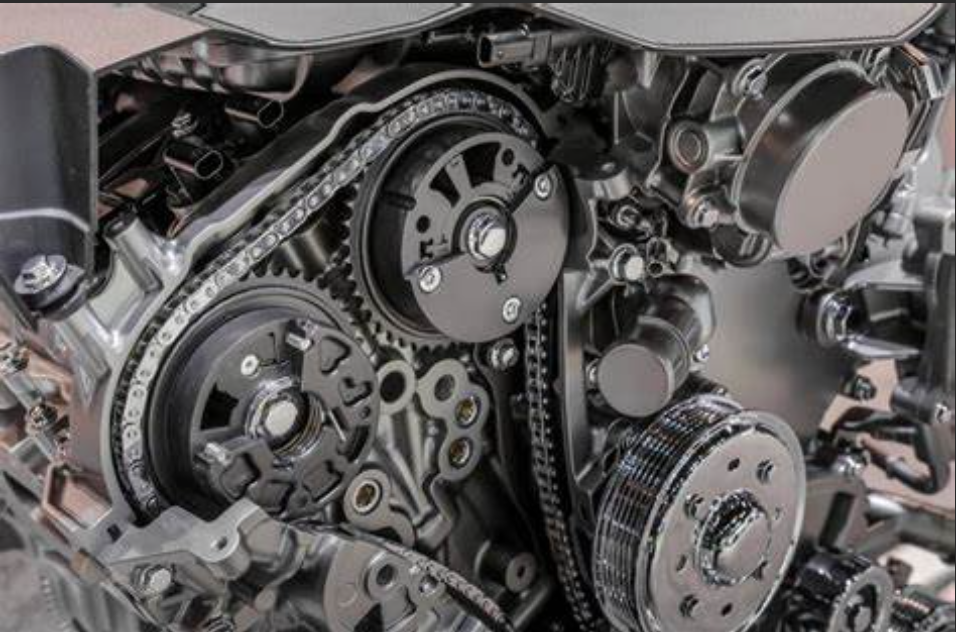

Automotive timing refers to a precise time control system of the engine valve mechanism. The timing system is an important part of the engine's valvetrain and one of the important factors that ensures the engine breathes smoothly. By controlling the opening and closing moments of the valves, the timing system accurately opens and closes the corresponding intake valves and exhaust valves at scheduled times, so that sufficient fresh air can enter the cylinder in time and exhaust gas can be discharged from the cylinder in time, thereby ensuring that the engine has normal and Good power output performance. The timing system usually includes a timing belt or chain that drives the camshaft to ensure the valves open and close on time. The correct operation of the timing system is critical to engine performance and efficiency.
2. Why do you need car timing tools?
1) Accuracy: Timing tools ensure that your engine's timing is set correctly to avoid reduced engine performance or damage. Using the correct timing tools can help ensure optimal engine performance under all operating conditions.
2). Avoid damage: When replacing the timing belt or chain, using timing tools can ensure that the car engine will not be damaged. Failure to use a timing tool during this process can result in interference between engine components, resulting in serious damage.
3. What types of car timing tools are there?

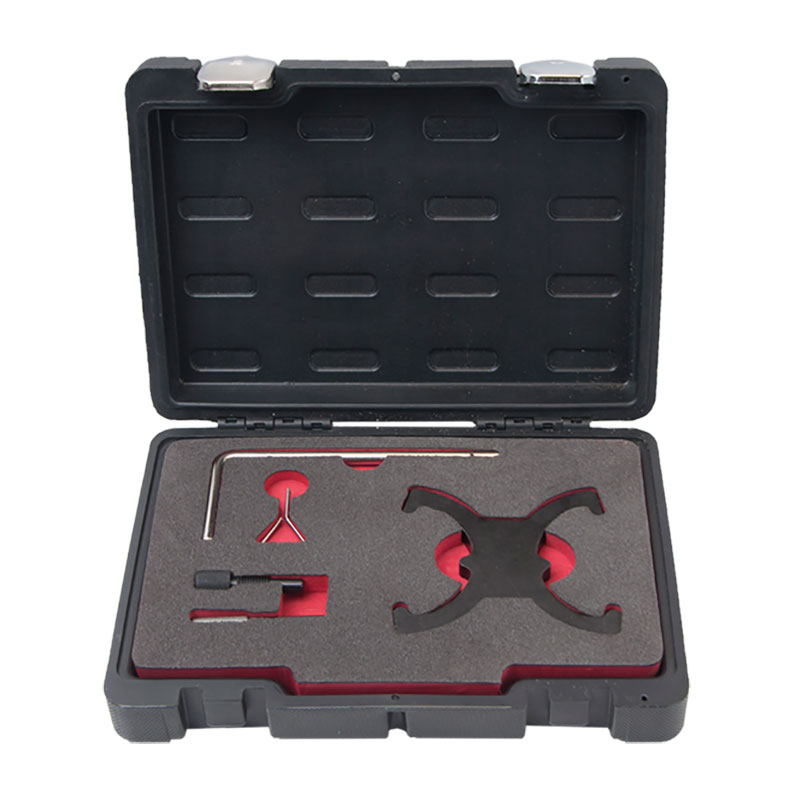

1).Timing belt tool: A tool used to install and adjust the engine timing belt. Includes tensioners, adjusters and locking tools to ensure belts are installed correctly and maintain correct tension.
WT04A2054D

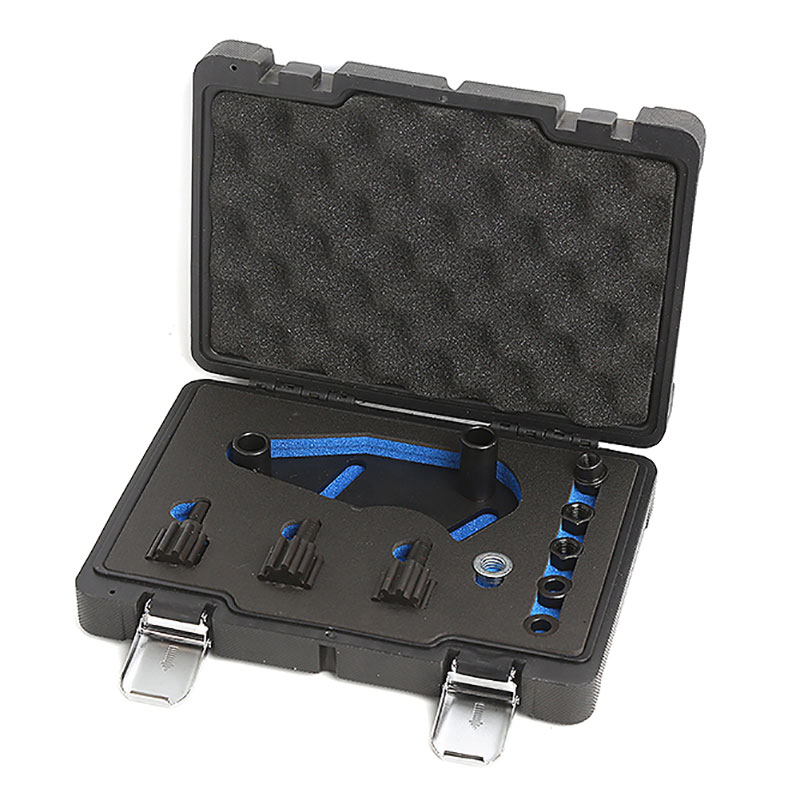

2) . Timing chain tool: Suitable for engines equipped with timing chains to help install and adjust the chains. Includes chain tensioner, adjuster and locking tool.
WT04A2298D

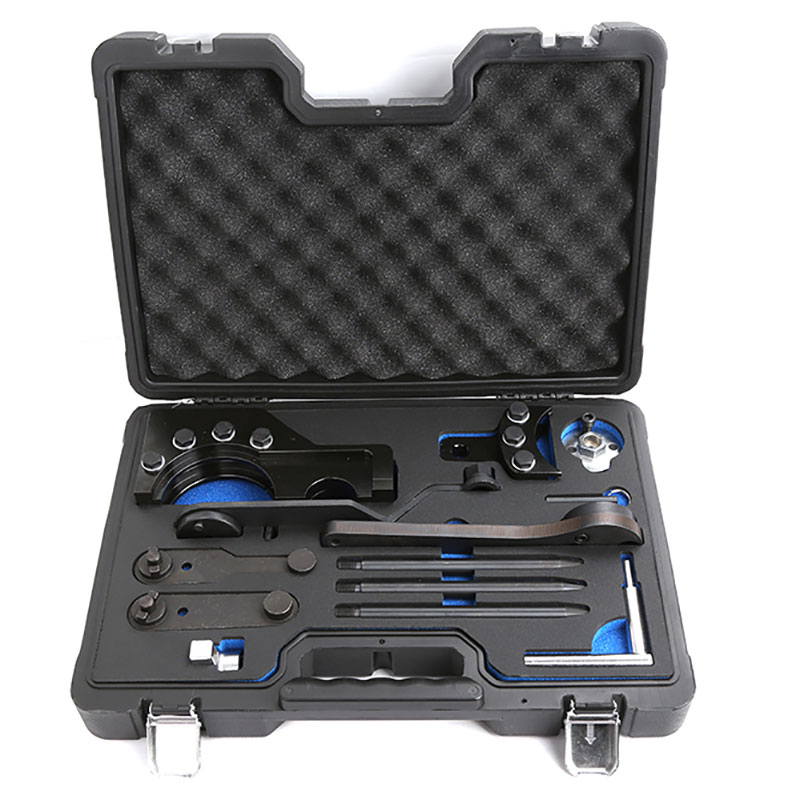

3) . Camshaft locking tool: Used to lock the camshaft to ensure that it maintains the correct position when adjusting timing.
WT04A2391D

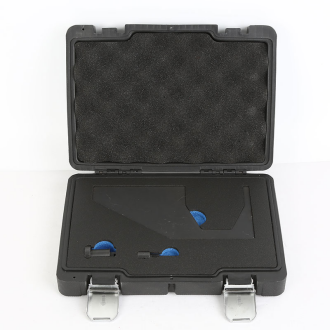

4) . Crankshaft locking tool: Used to lock the crankshaft to ensure that it maintains the correct position when adjusting timing.
WT04A2460D

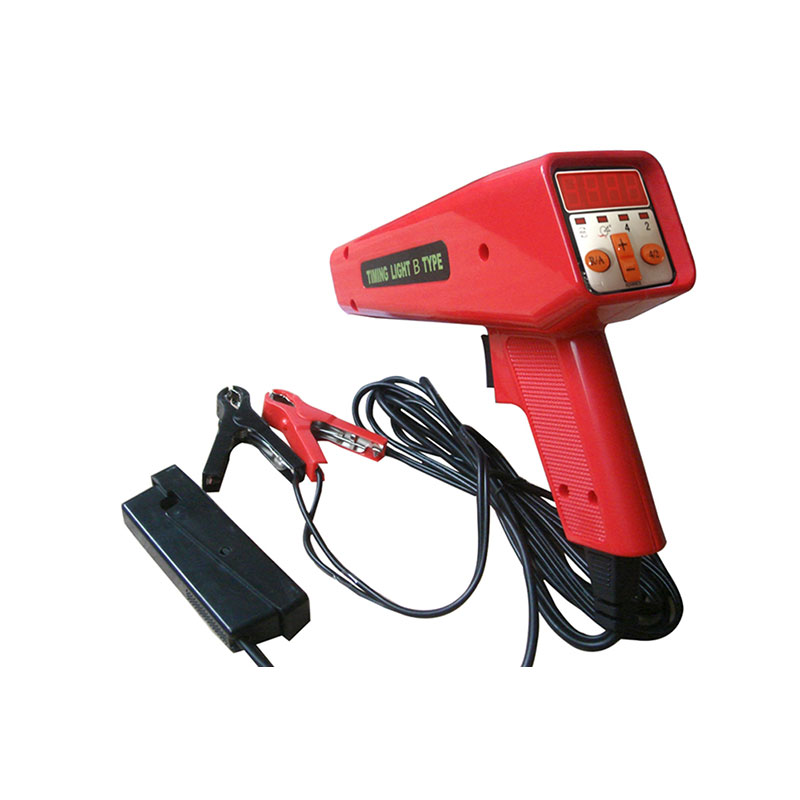

5) . Timing light: A visualization tool that displays the position of engine timing through light or LED. Can be used to adjust ignition timing and camshaft timing.
WT04A6013
6) . Ignition timing tool: Used to adjust ignition timing to ensure that the ignition system is triggered at the correct time.
7). Index plate: Used to measure the rotation angle of the camshaft and crankshaft to ensure that they are in the correct position.
8). Camshaft position sensor tool: Used to adjust and install the camshaft position sensor to ensure the accuracy of the sensor.
9). Crankshaft position sensor tool: Used to adjust and install the crankshaft position sensor to ensure the accuracy of the sensor.
4. How to use timing tools?
1).Be sure to refer to the manual and understand the identification of each tool in the tool kit, then use the correct timing tool. Some kits are universal but will not fit all engines.
2).Do not install the timing tool with force, and do not use force or leverage to insert the locking pin or locking plate. Doing so can damage the tool or even cause the timing gear to lock. Instead, install gently. If you have to force the timing tool into a slot or any other opening, you may be using the wrong type of timing tool and check the instruction manual again.
3).Do not start the engine while using the timing tool. The engine timing tool locks the timing gear and other components. Starting it at this time will cause damage to the tool itself and the locking parts. Therefore, when using the timing tool, you need to shut down the engine and disconnect the battery.
4). Remove all timing tools after use. After completing the repair of engine parts or replacing the timing belt or chain, you need to ensure that all tools have been removed and check the installation manual if necessary.
